Introducing the Sona 35, a High-Fidelity Point Source
The Sona 35 is a full-range, high-fidelity architectural loudspeaker. This single-channel, 3-way point source delivers beautiful sonic quality with an extended bass response to 58 Hz. With its slim, compact form factorβjust 32 inches long and less than 4 inches deepβthe Sona 35 provides an impressive SPL and an extra octave of frequency response.

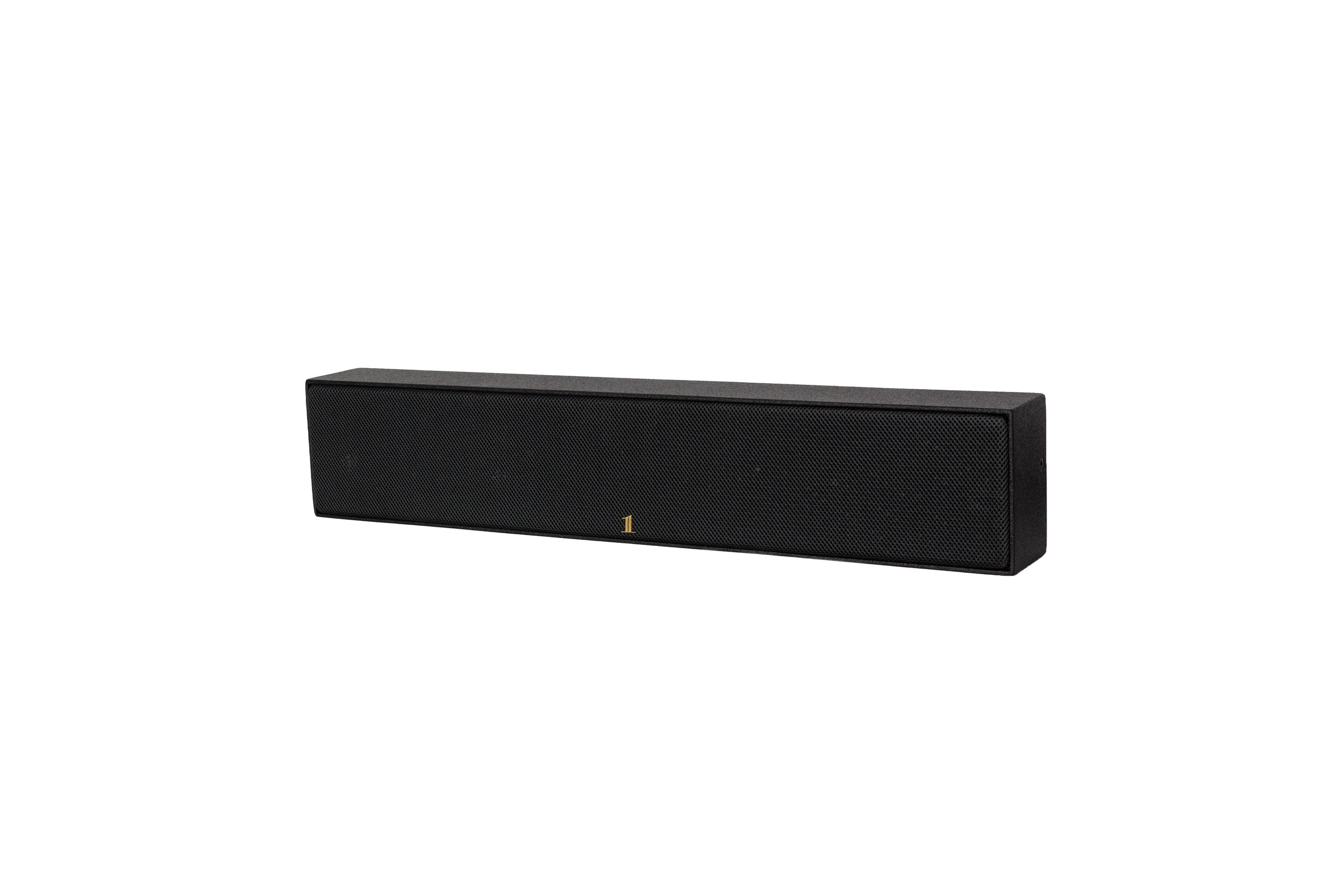

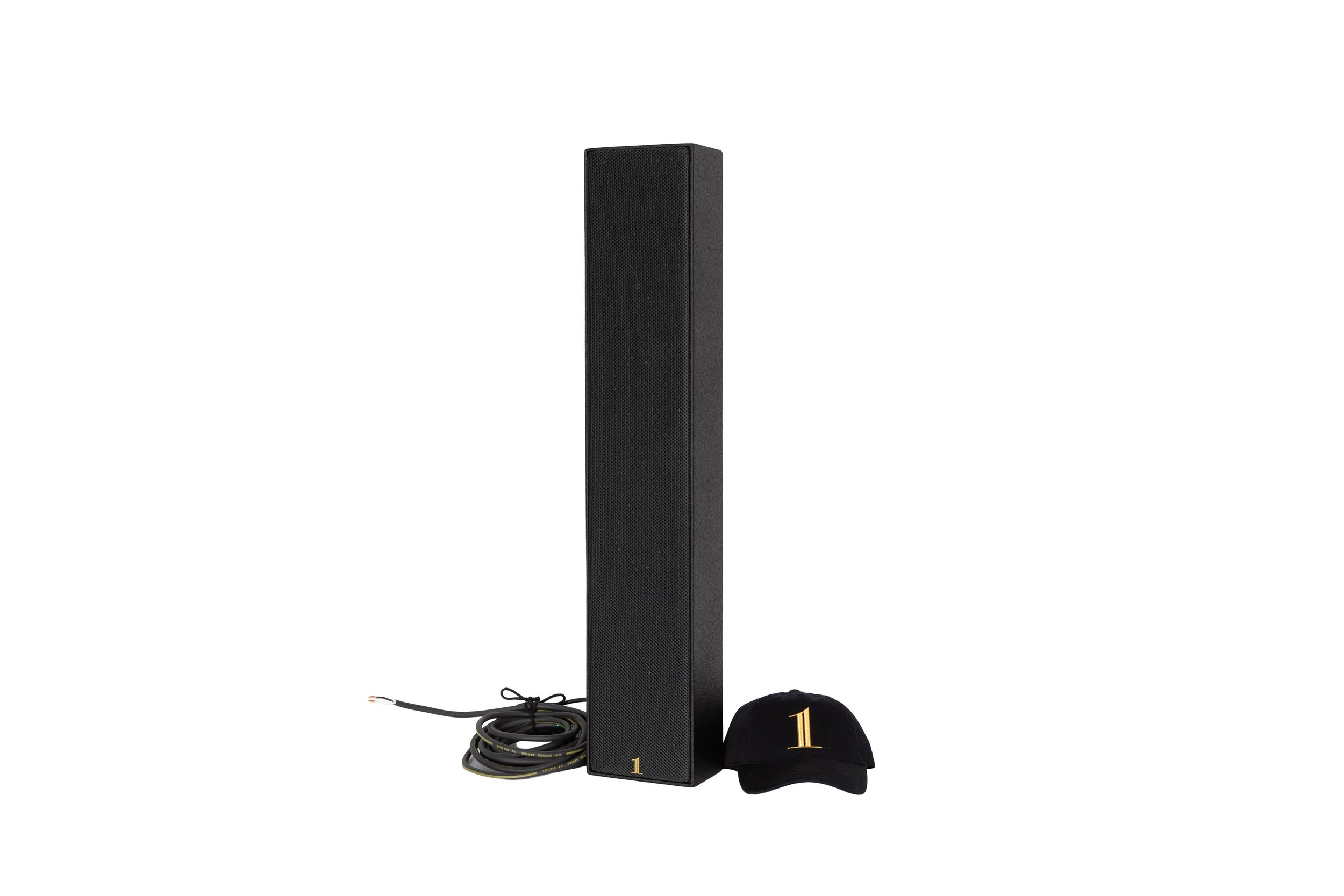

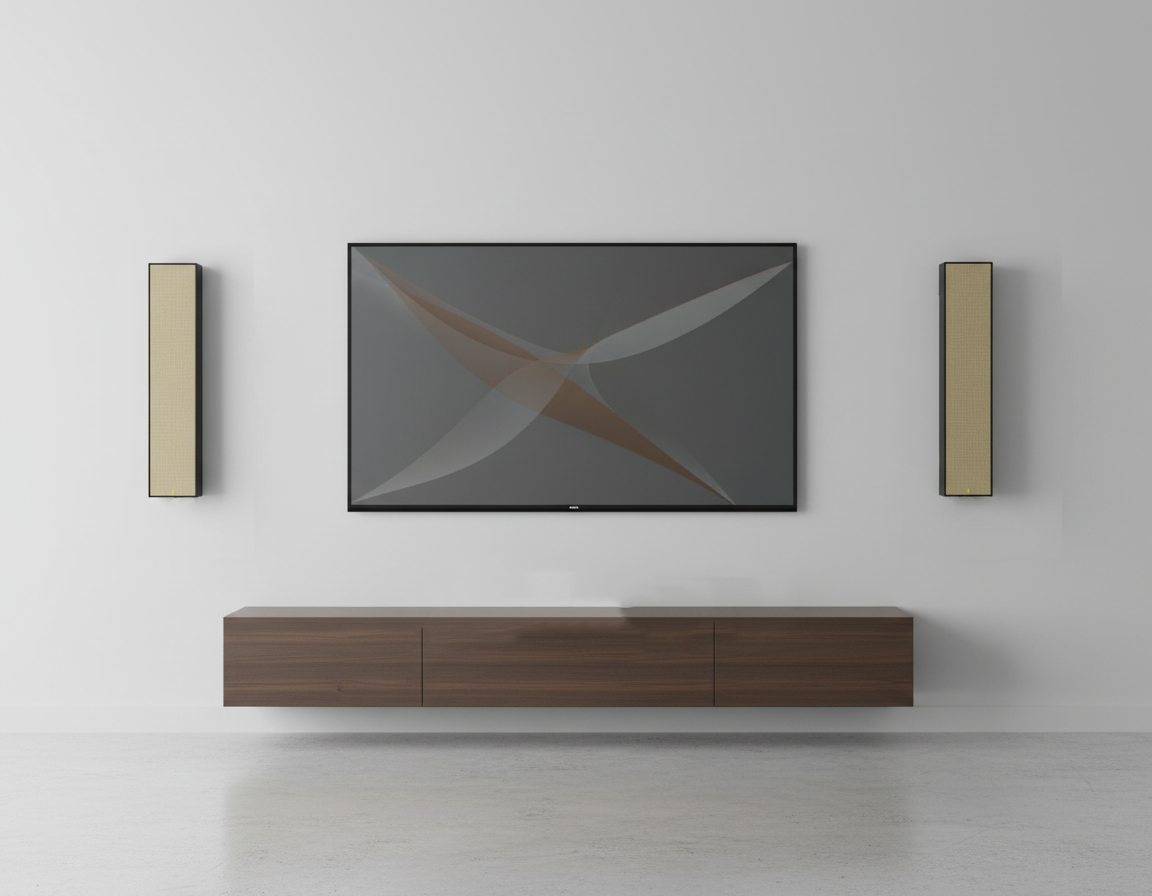

The Sona 35 is ADA-compliant, standing only 4β from the wall when mounted using the included recessed mounting bracket. It can be installed horizontally or vertically, recessed into a wall, or aimed using the optional Swivel Mount accessory, allowing for downtilt and/or horizontal rotation in either orientation. This versatility makes the Sona 35 ideal for distributed audio applications, such as hospitality venues, theaters, and amusement parks, as well as conference rooms, classrooms, residential spaces, and more.
The Sona 35 is IP55-rated and saltwater-resistant, making it suitable for both indoor and outdoor environments. It is available in two versions: one featuring a marine-grade cable gland and A4 stainless steel 316 hardware, and another with a screw terminal connector. Like all 1 SOUND loudspeakers, the Sona is available in custom colors and finishes.
Specifications
Description: Passive, 3-way, high-fidelity point source
Bandwidth: 58 Hz - 18 kHz (-6 dB preset dependent)
Max SPL: 120 dB @ 1m with preset
Power: 720 watts (program), 360 watts (AES)
Directivity: 85Β° conical
Elements: (1) 5" coaxial, (2) 5" low frequency drivers, (2) 5" passive radiators
Impedance: 16Ξ©
Connectors (S35i): (1) screw terminal block with input +/- and loop +/-
Connectors (S35m): (1) marine grade cable gland with 6 feet of 16/2 gauge wire in black or white
IP Rating: IP55 indoor/outdoor and saltwater-resistant
Rigging: (2) M6 points (only for included flush-mount bracket), (4) M6 points (only for Swivel Mount accessory)
Weight: 15.5 lb / 7 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV-resistant coating, A4 (316) stainless steel hardware, 3D spacer mesh fabric
Accessories: Recessed Mounting Bracket [included], Sona Swivel Mount
Dimensions: 6.1" (150 mm) W x 32.28" (820 mm) H x 3.94" (99 mm) D
Colors: Stocking black and white, custom colors and fabrics available
Launching this springβbe among the first to experience the Sona 35 at ISE Barcelona, stand 7N500.
More details can be found at: www.1-sound.com/sona
