Description

The Sona 35 is a full-range, high-fidelity, 3-way architectural point source. This single-channel loudspeaker offers beautiful sonic quality with an extended bass response to 45 Hz. It comprises of (3) 5-inch drivers and (2) 5-inch passive drivers that deliver the extra octave of frequency response while producing a surprising amount of SPL for its slim and compact form factor.

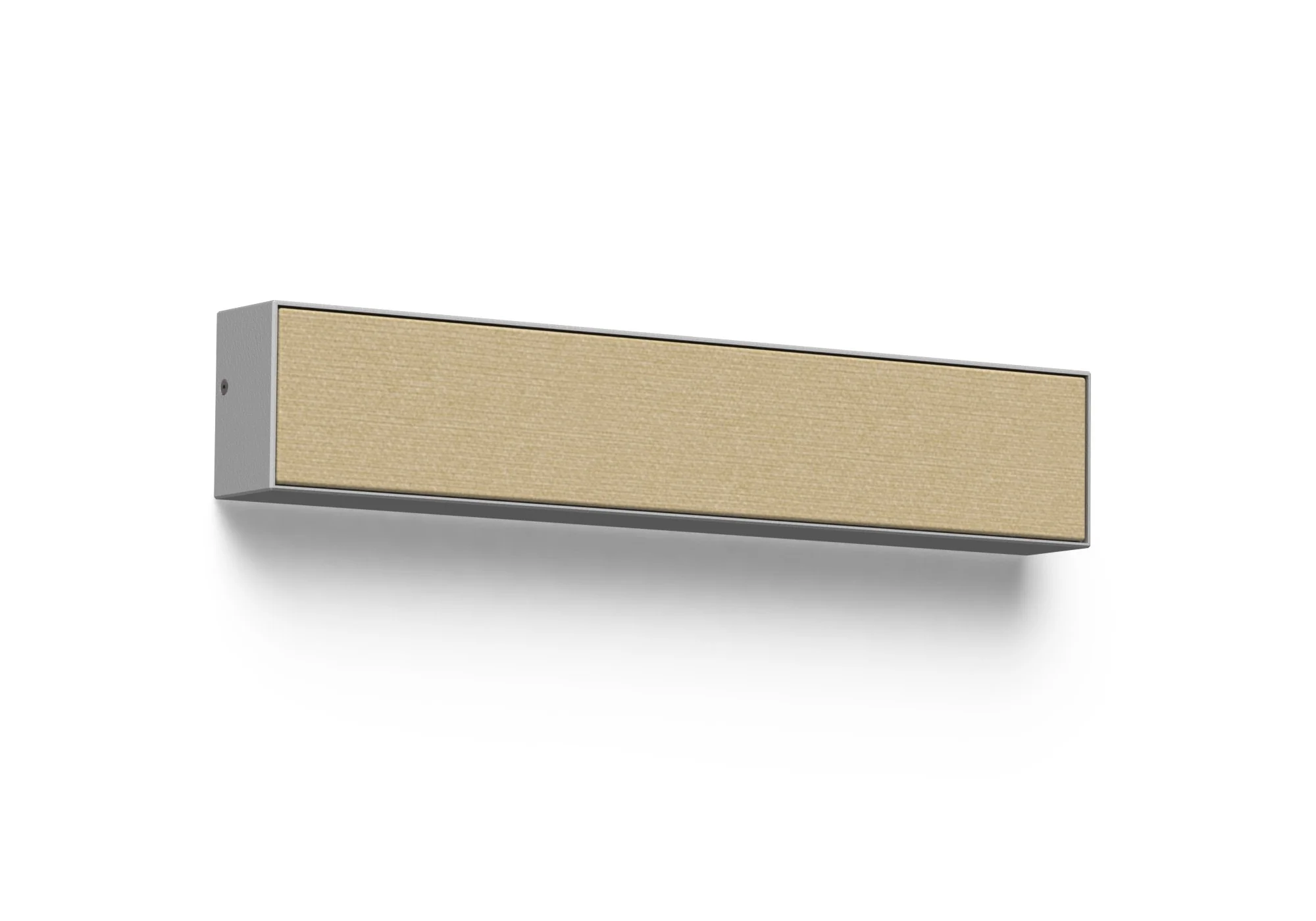

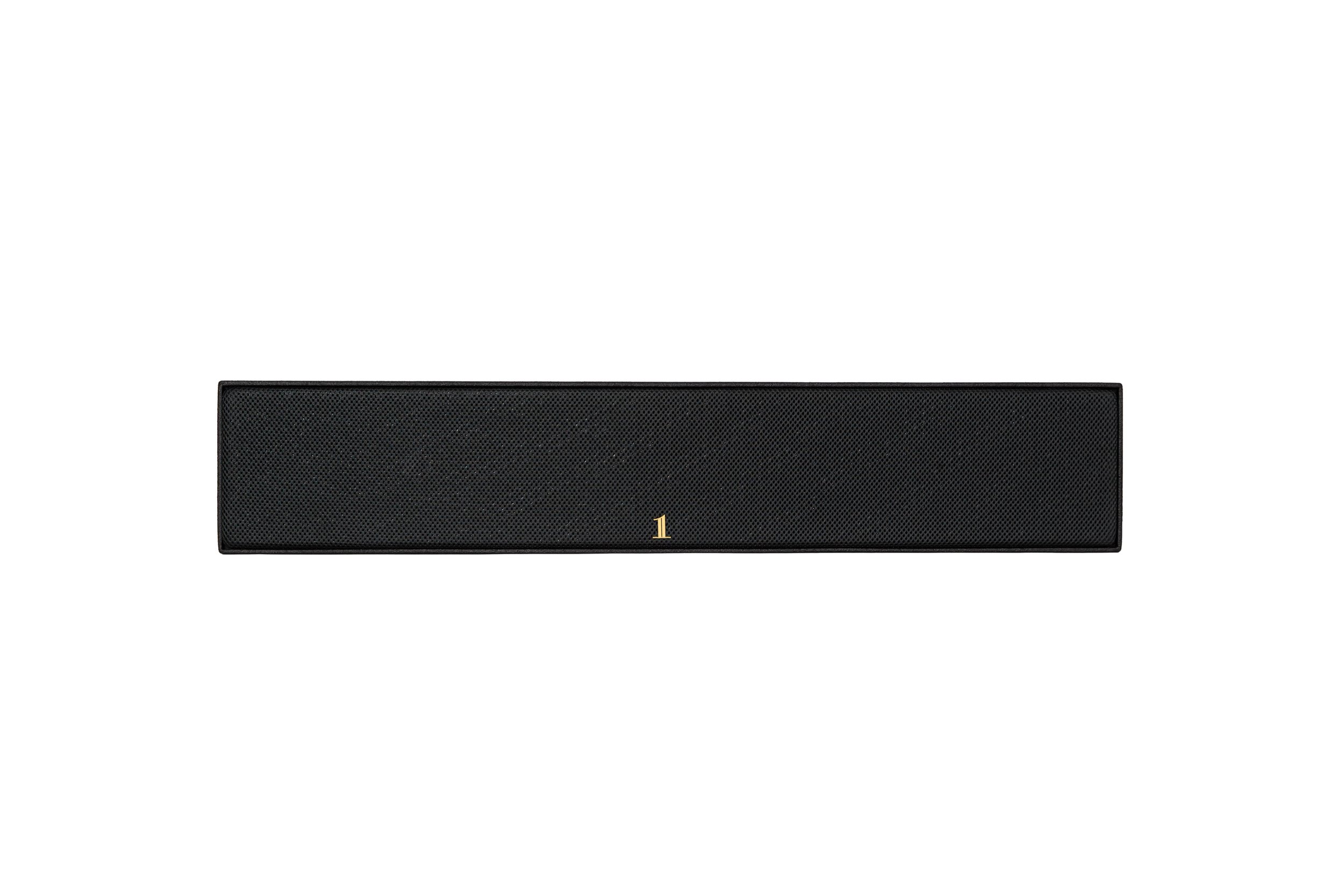

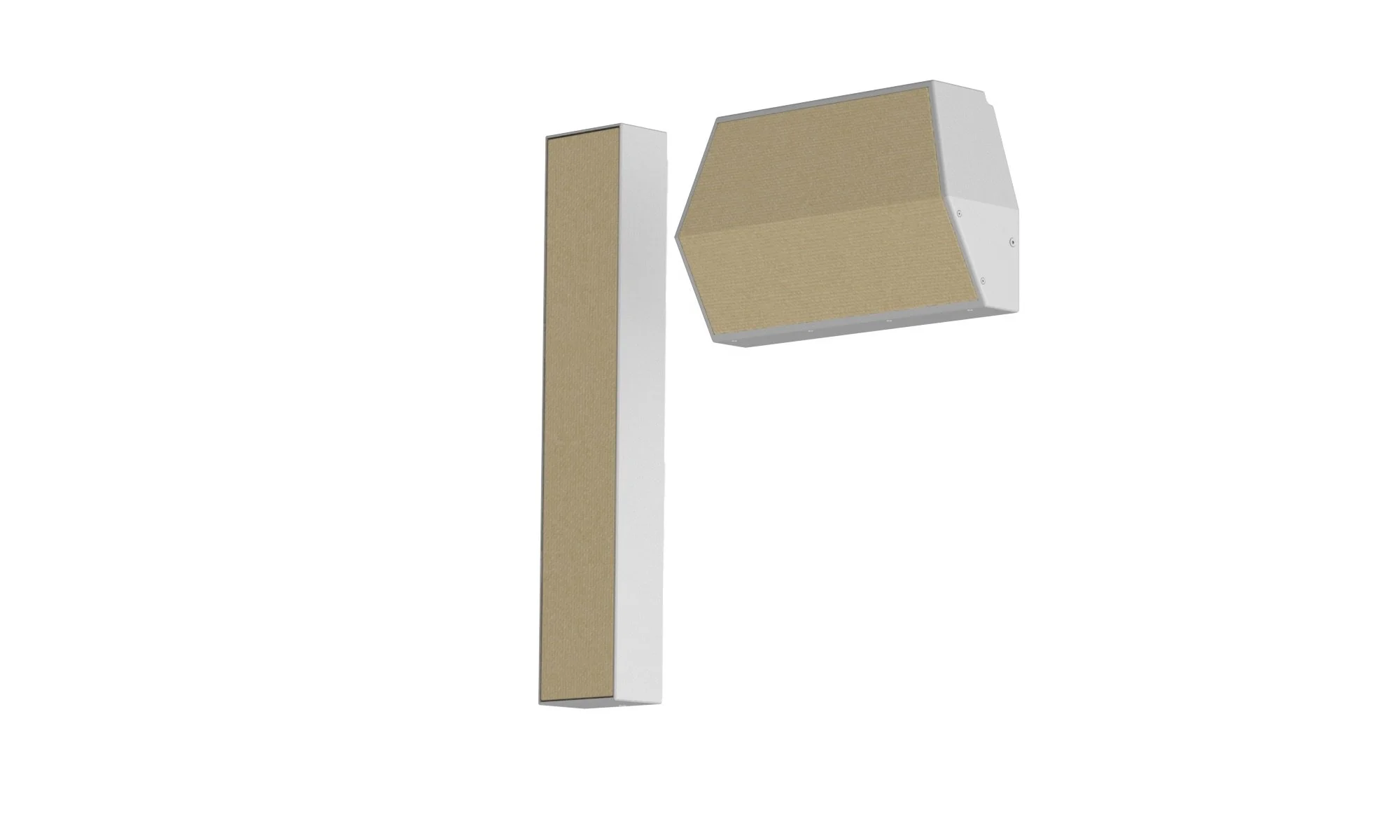

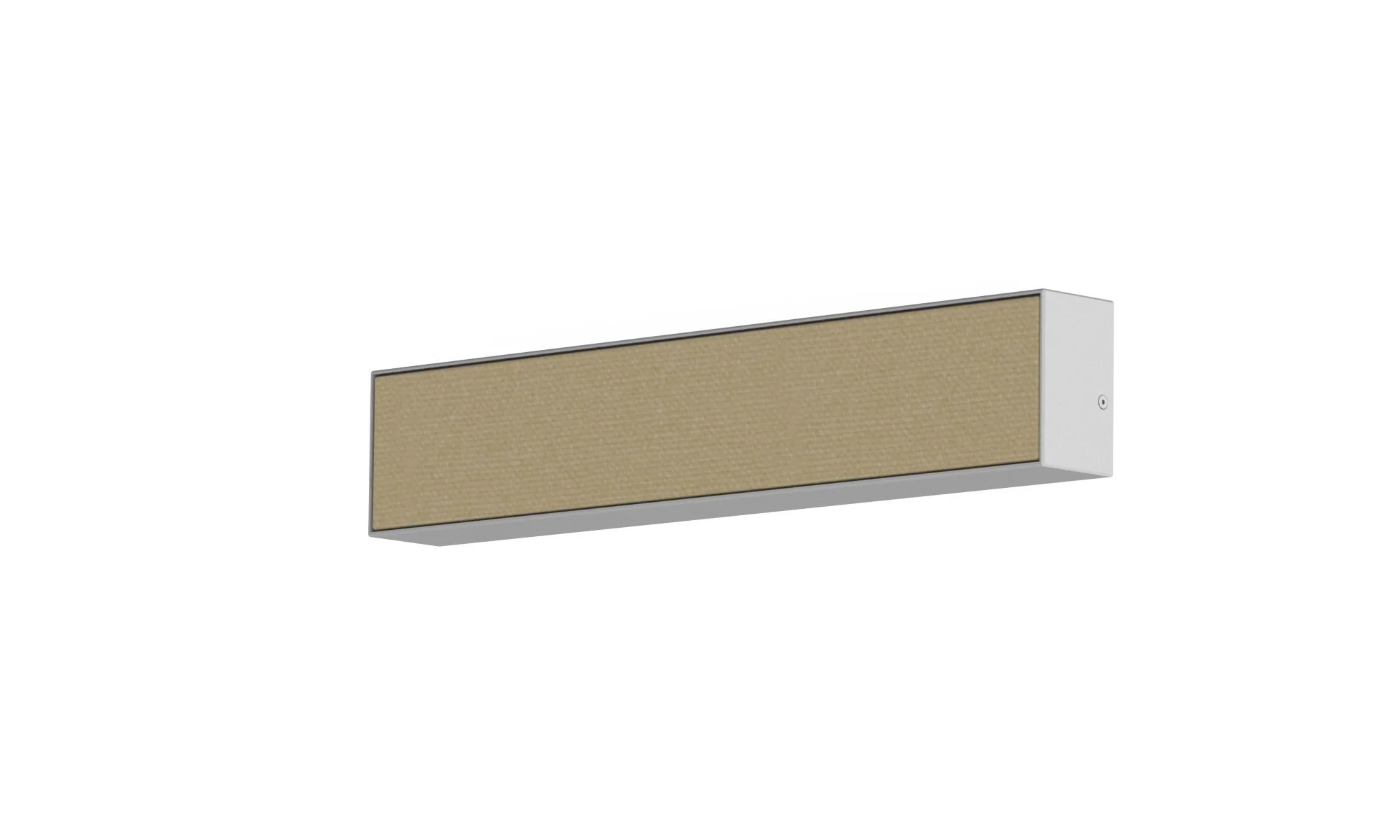

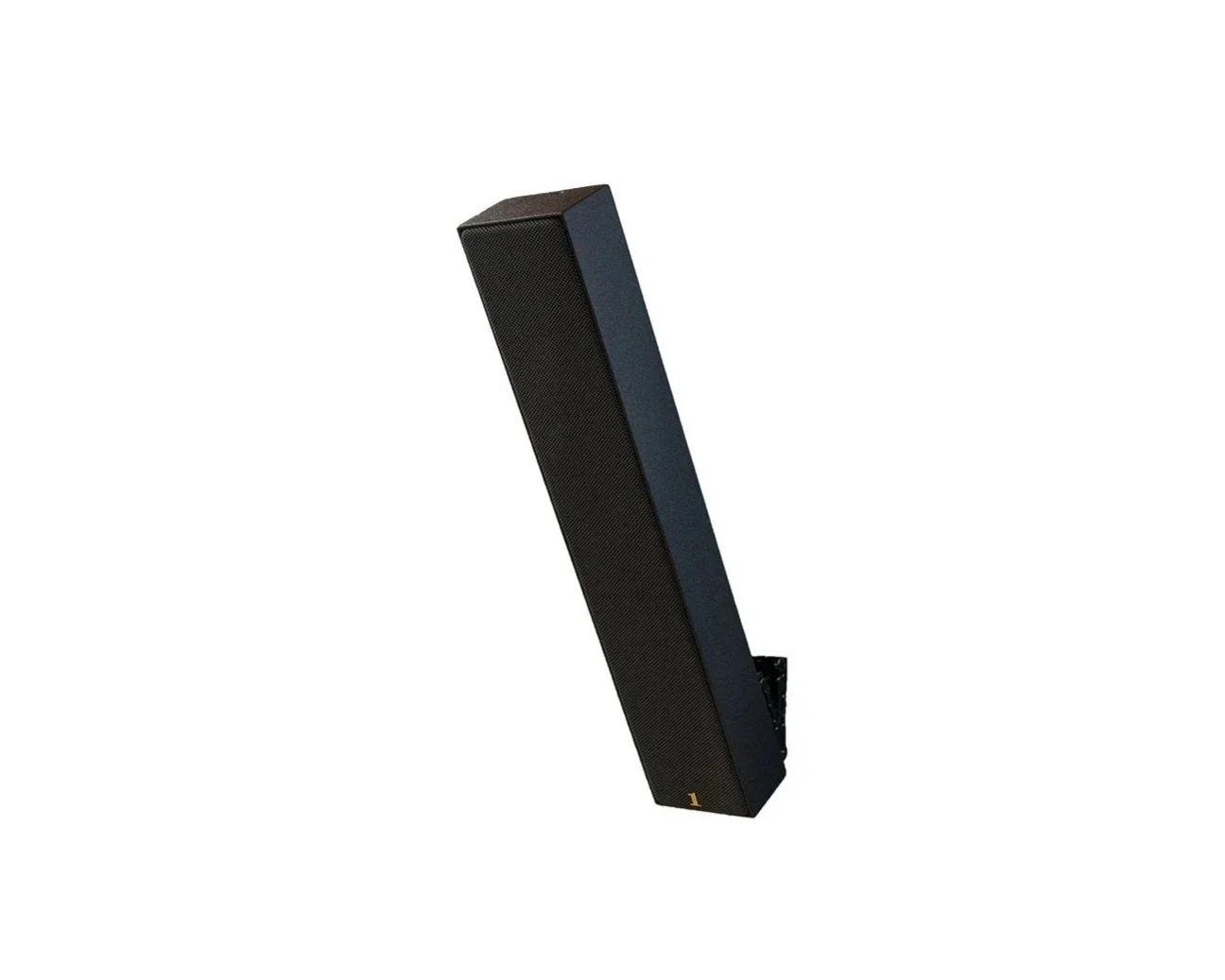

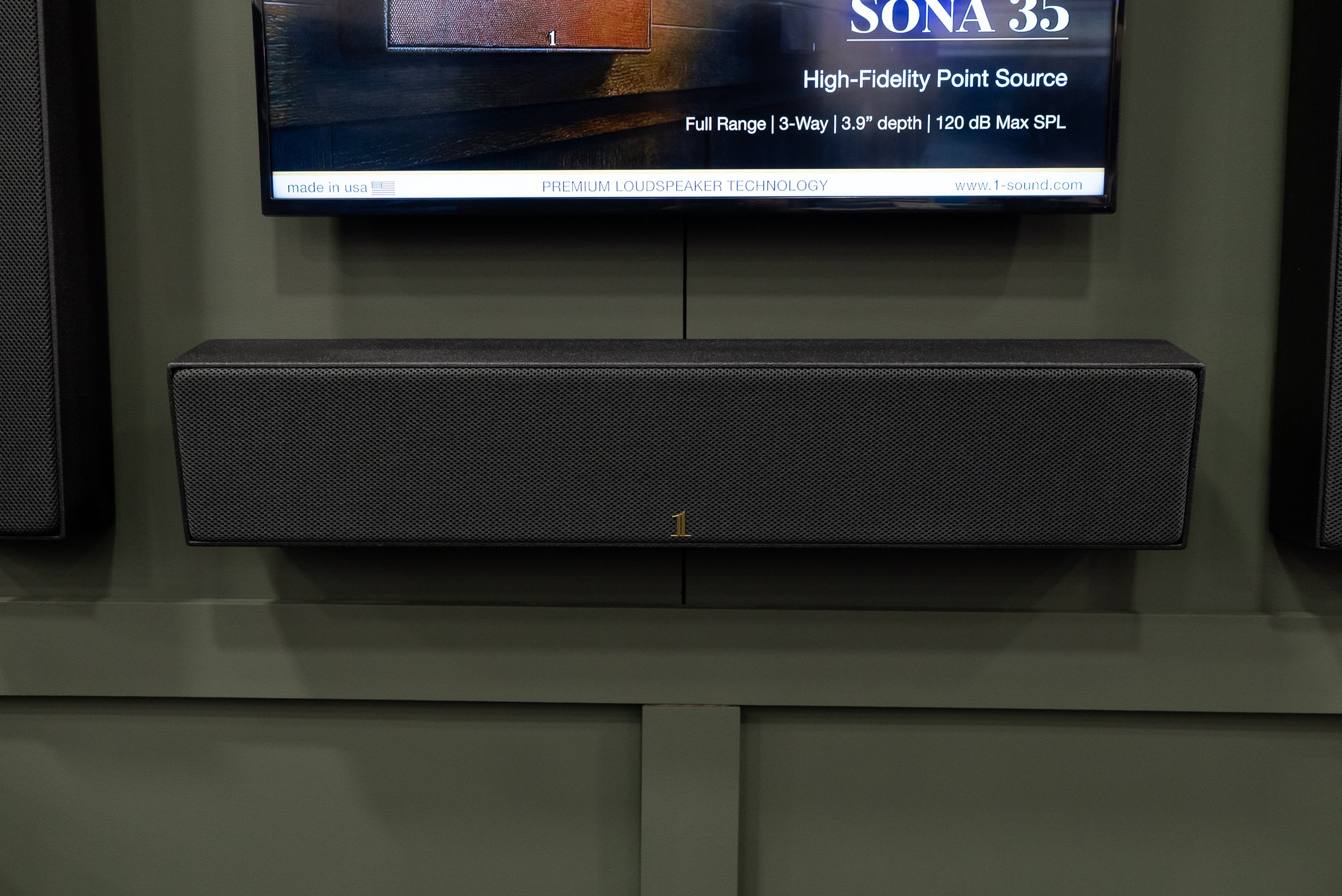

The Sona 35 is ADA-compliant, standing less than 4” off a wall with its included recessed flush-mounting bracket. The Sona can be flush-mounted horizontally or vertically, recessed into a wall, or aimed with a downtilt and/or horizontally using the Swivel Mount accessory in a vertical or horizontal deployment.

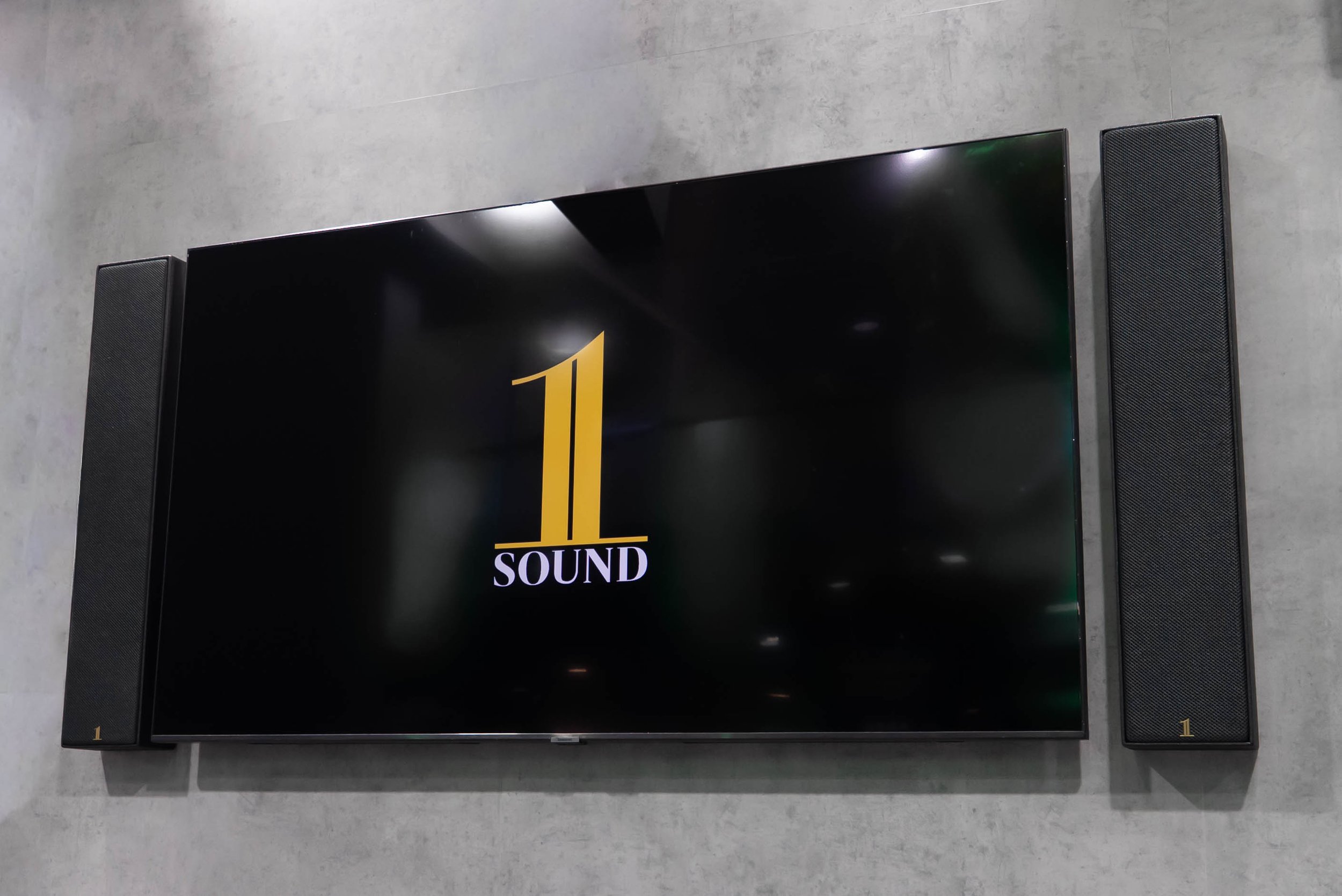

The Sona is ideal for distributed audio installations with or without subwoofer support and applications such as hospitality, cruise ships, performance venues, residential theaters, conference rooms, and more. The Sona 35 is available in two different versions: the install version that has a screw terminal connector, or the marine version that has a marine-grade cable gland and cable as the connection. The Sona is IP55 rated and saltwater resistant and is available in indoor and outdoor custom colors and finishes.

preliminary SPECIFICATIONS

Description: Passive, 3-way, high-fidelity point source
Bandwidth: 58 Hz - 18 kHz (-6 dB preset dependent)
Max SPL: 120 dB @ 1m with preset
Power: 720 watts (program), 360 watts (AES)
Directivity: 85° conical
Elements: (1) 5" coaxial, (2) 5" low frequency drivers, (2) 5" passive radiator
Impedance:    16Ω
Connectors (S35i):    (1) screw terminal block with input +/- and loop +/-

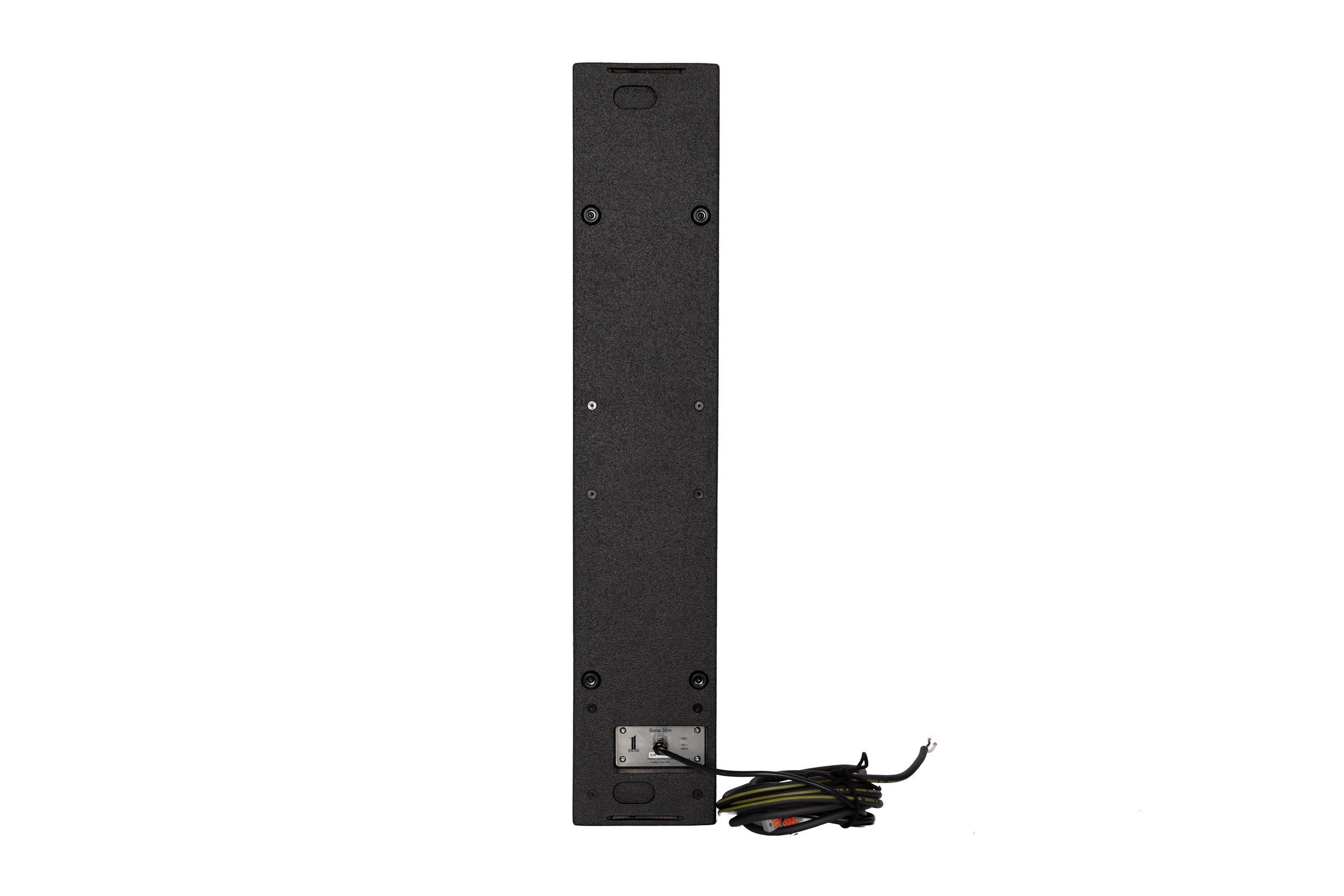

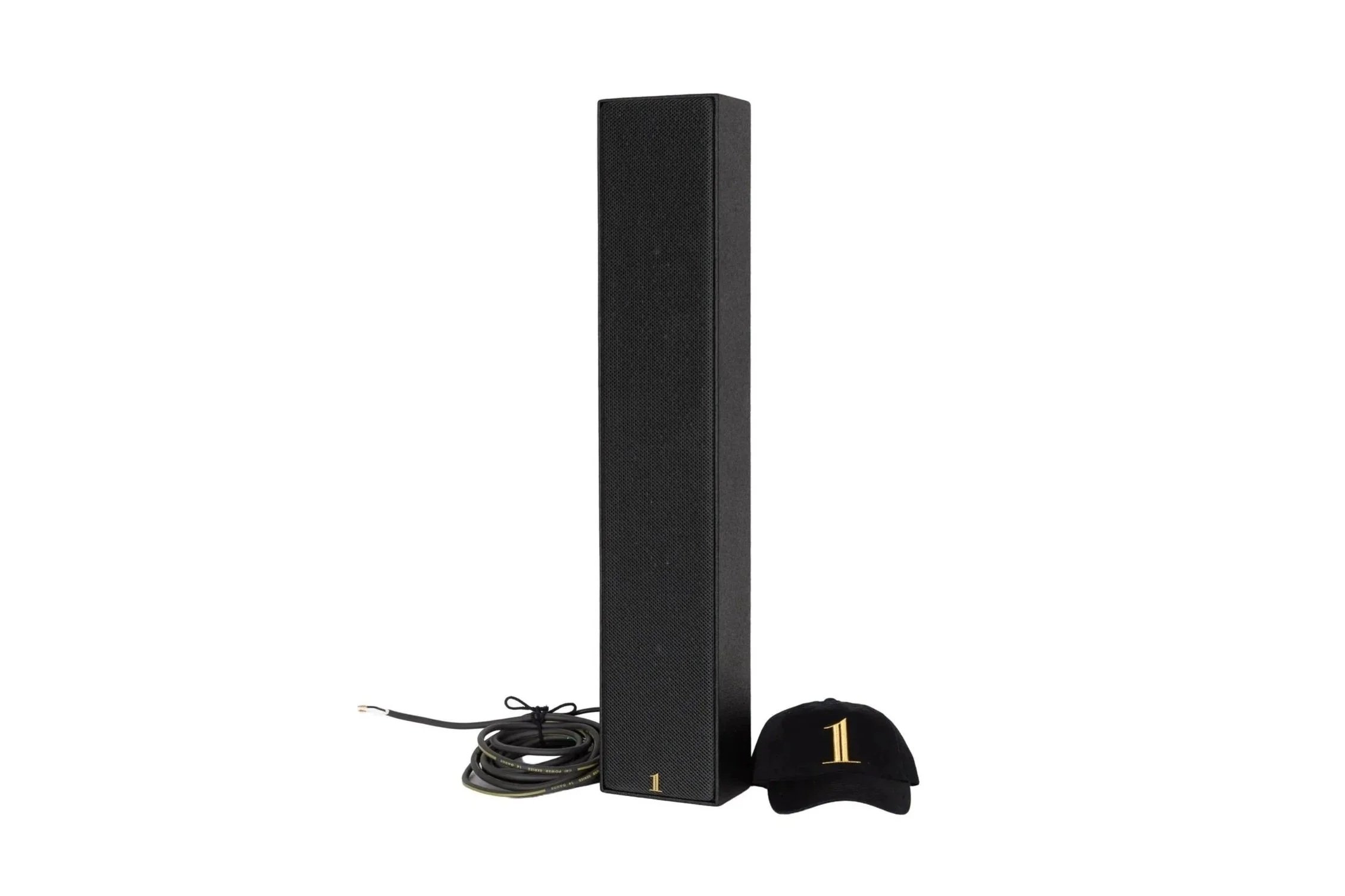

Connectors (S35m):    (1) marine grade cable gland with 6 feet of 16/2 gauge wire in black or white
IP Rating: IP55 indoor/outdoor and salt water resistant

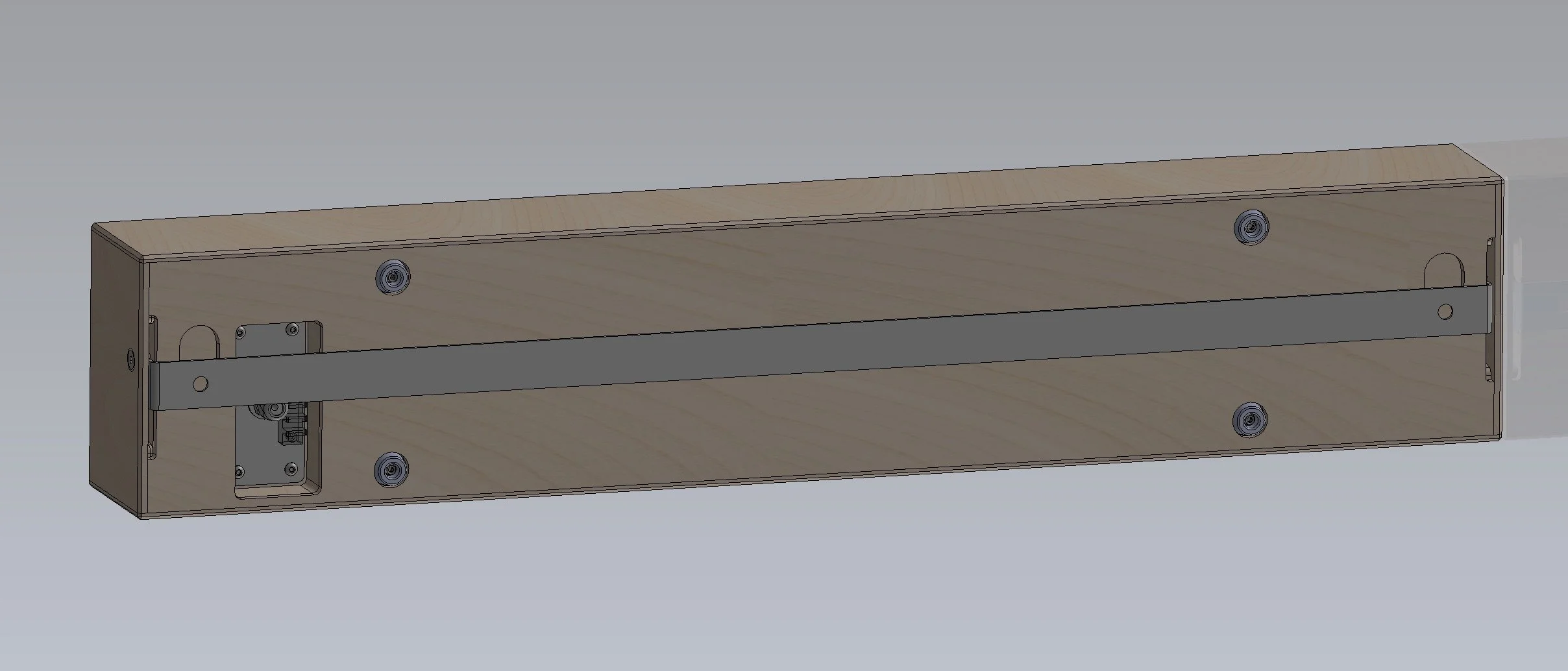

Rigging: (2) M6 points (only for included flush-mount bracket), (4) M6 points (only for Swivel Mount accessory)
Weight: 15.5 lb / 7 kg
Construction:    Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV-resistant coating, A4 (316) stainless steel hardware, galvanized and powder-coated black or white steel input plate, 3D spacer mesh fabric

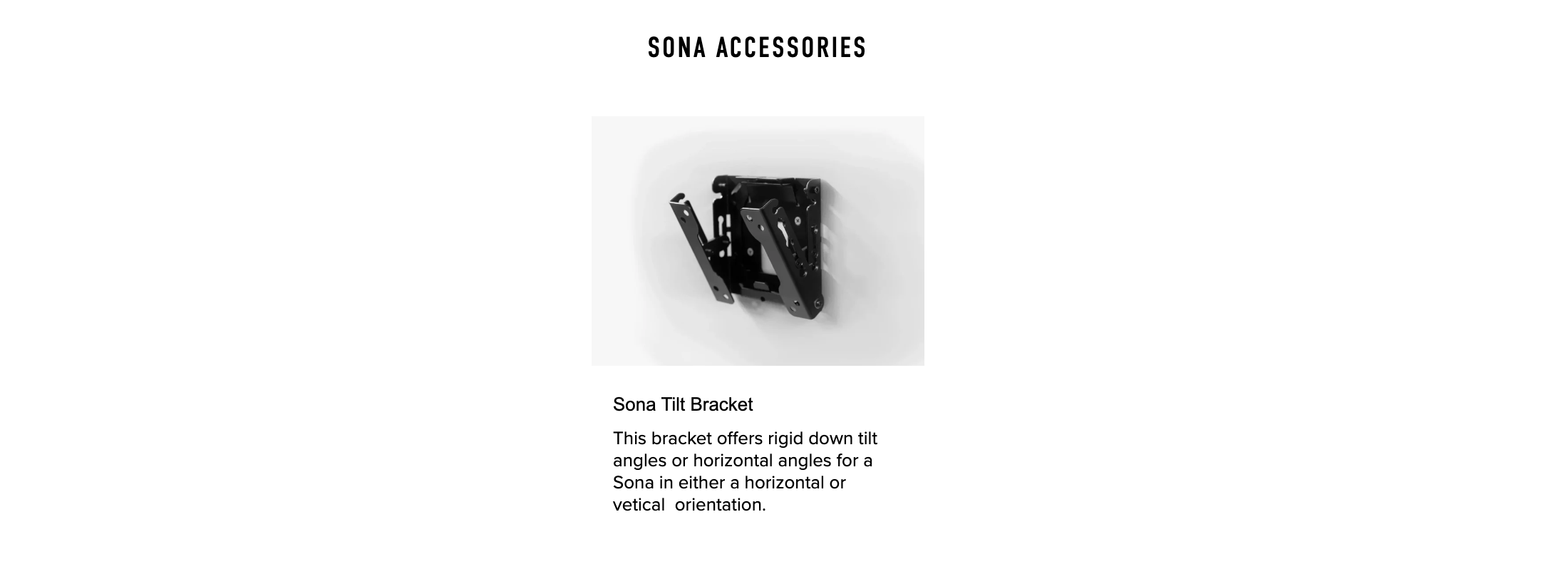

Accessories: Recessed Mounting Bracket [included], Sona Swivel Mount
Dimensions:    6.1" (150 mm)W x 32.28" (820 mm)H x 3.94" (99 mm)D
Colors:    Stocking black and white, custom colors and fabrics available

downloads

S35 SPECIFICATION & DATA SHEET - COMING SOON…
S35 EASE PROFILE - COMING SOON…
335 EASE FOCUS 3 - COMING SOON…
S35 WALL CLF FILE - COMING SOON…
S35 PDF DRAWING - COMING SOON…
S35 2D DWG DRAWING - COMING SOON…
S35 3D DWG - COMING SOON…
SONA 35 REVIT (Freestanding/Flush-mounted) [with materials] - COMING SOON…
SONA 35REVIT (Freestanding/Flush-mounted) [w/o materials] - COMING SOON…

(1) 5" coaxial driver with a high frequency element
(2) 5” LOW FREQUENCY DRIVERS
(2) 5” Passive Radiators

ACCESSORIES: Recessed Mounting Bracket [included], Swivel Mount
