Swivel Mount
C4 | C5/C6 | C8

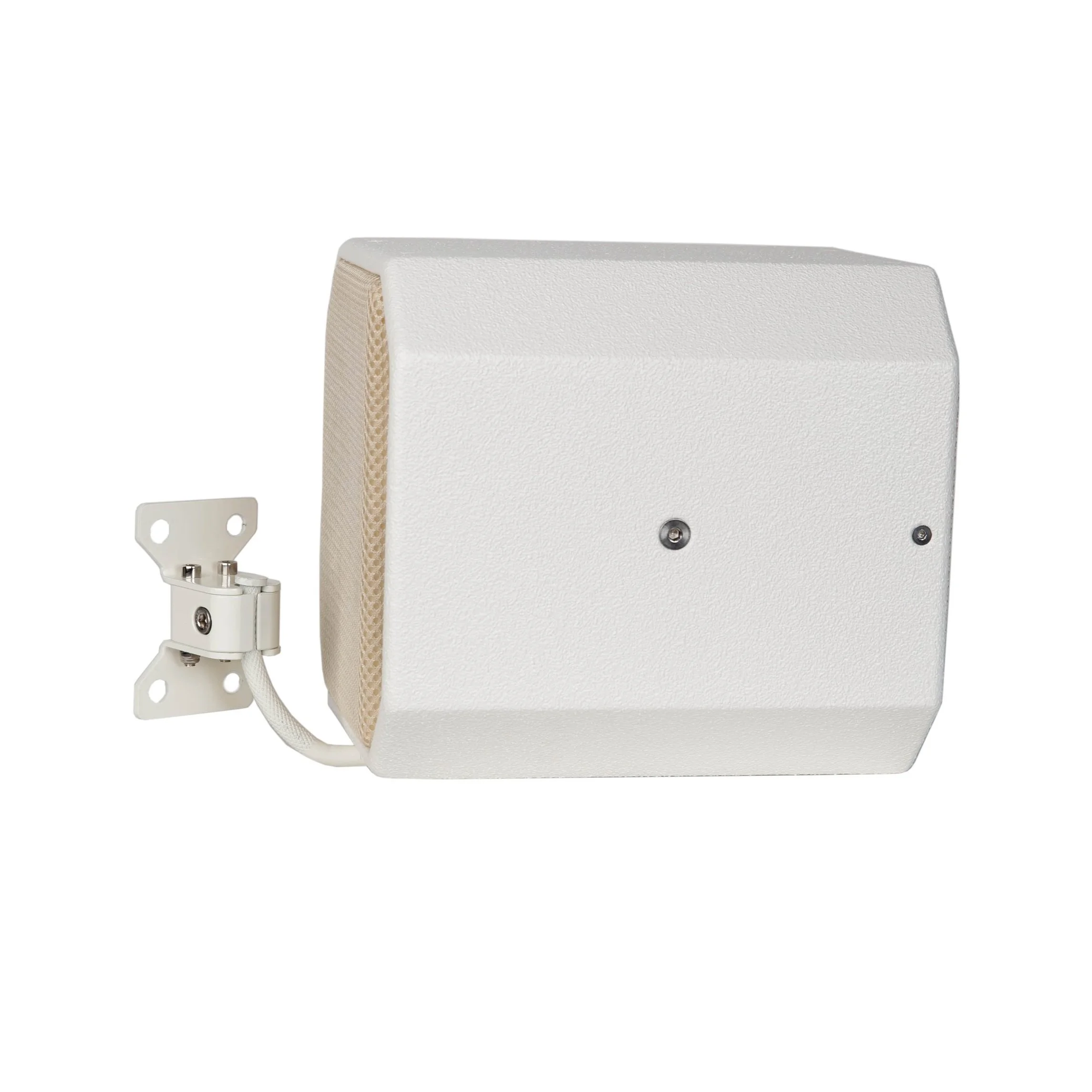

The Swivel Mount offers discreet mounting of a Cannon to a wall. Easily adjust both the horizontal and vertical angles and tighten when at the desired position. View the PDF drawings below to see more about the maximum angles possible.
Use a 4mm hex/Allen Key to loosen and tighten into position.
*Tip: If you are aiming the loudspeaker sharply to the side of the hex screw, you can take apart the mount by removing the two screws on the top to flip the clamp and hex screw to the opposite side. This will give you space to tighten the mount when installing.
This clamp is made from galvanized, zinc plated steel with powder coating for weather protection.
stocked in black, white & A4 stainless steel 316
