Panorama 34

• The Panorama 34 is a passive loudspeaker featuring Panorama Technology, offering true stereo in its field from a single loudspeaker meant for installation or production applications.

Panorama System

• The Panorama 65 is a premium self-contained loudspeaker system that delivers a true stereo spatialized sound field from a single, ADA-compliant, discreet enclosure.

• The Panorama 65 is offered in a remote powered kit and an active version that has analog and digital inputs such as HDMI e-ARC, Milan/ABV, AES67, and Dante. It is a flush-mounted loudspeaker that can be recessed into a wall or aimed with its Tilt Bracket.

Description

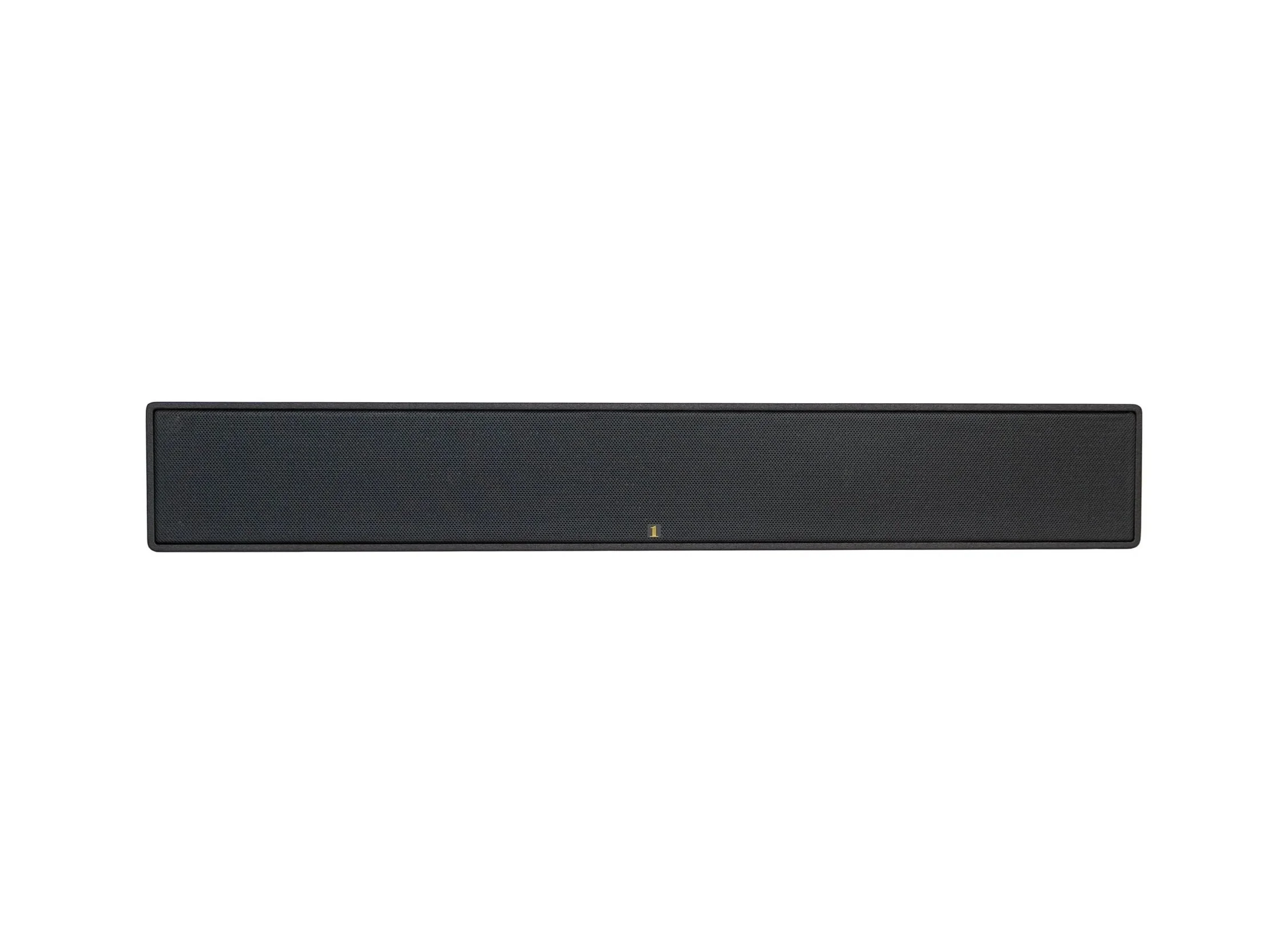

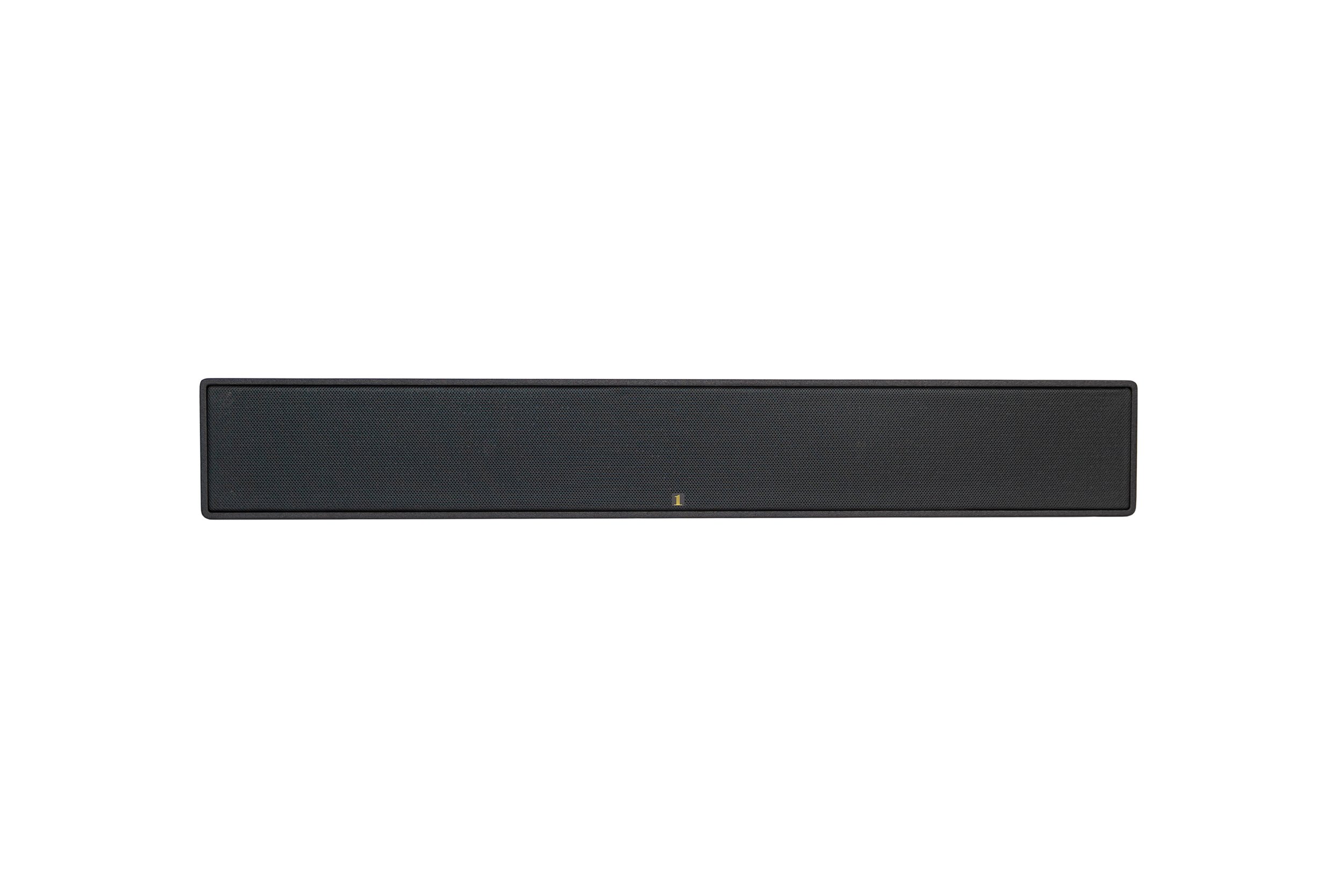

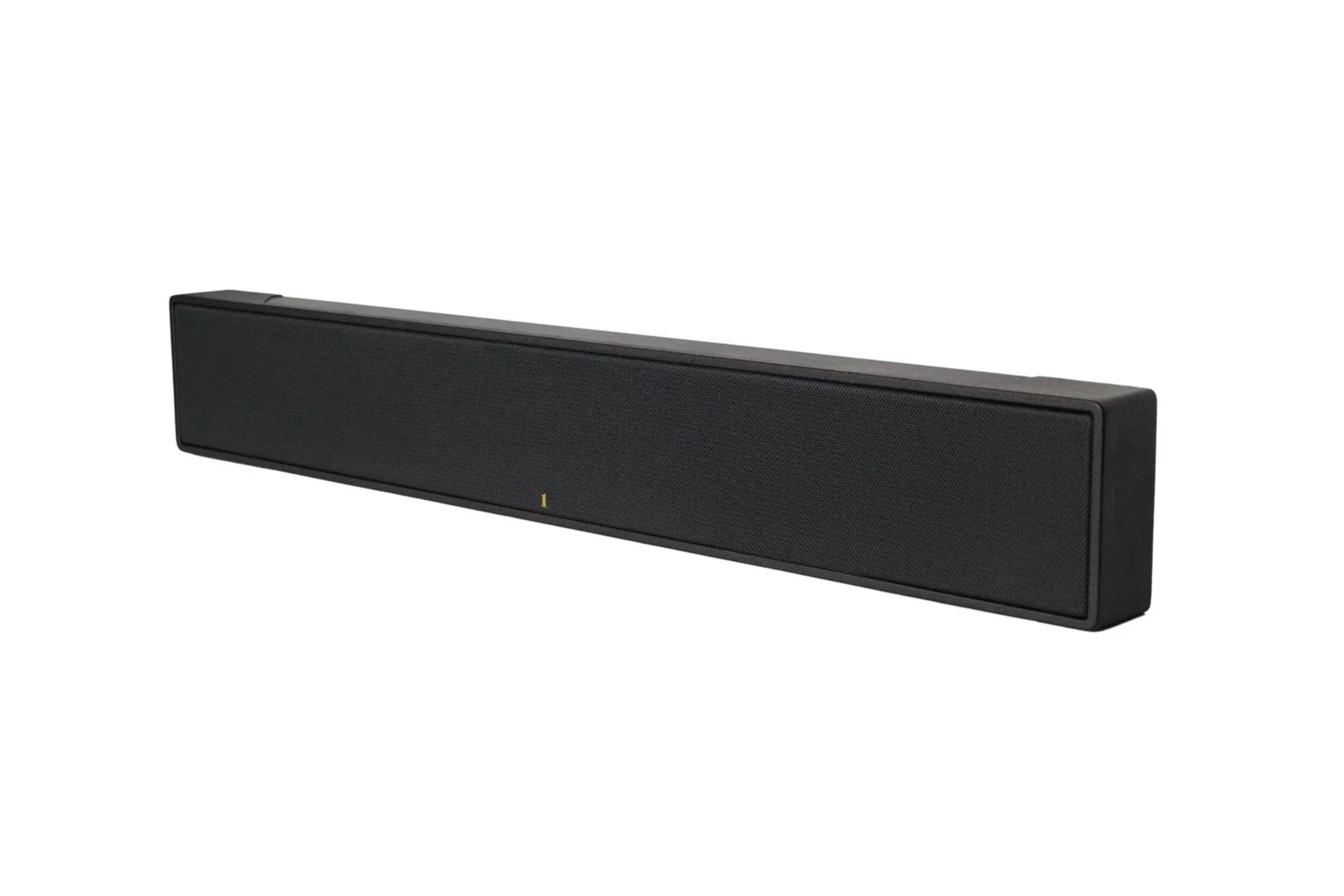

Panorama 65 is a premium self-contained loudspeaker system that delivers a true stereo spatialized sound field from a single, ADA-compliant, discreet enclosure. The Panorama features 1 SOUND’s Mono+Stereo Technology; this loudspeaker was engineered to have a hybrid mid+sides sonic image with a consistent mono throughout the whole field.

The Panorama is high-fidelity and full range with impactful bass down to 40 Hz, meaning there is no subwoofer required. It provides nominal coverage of 120° horizontally and 70° vertically with a maximum SPL of 122 dB.

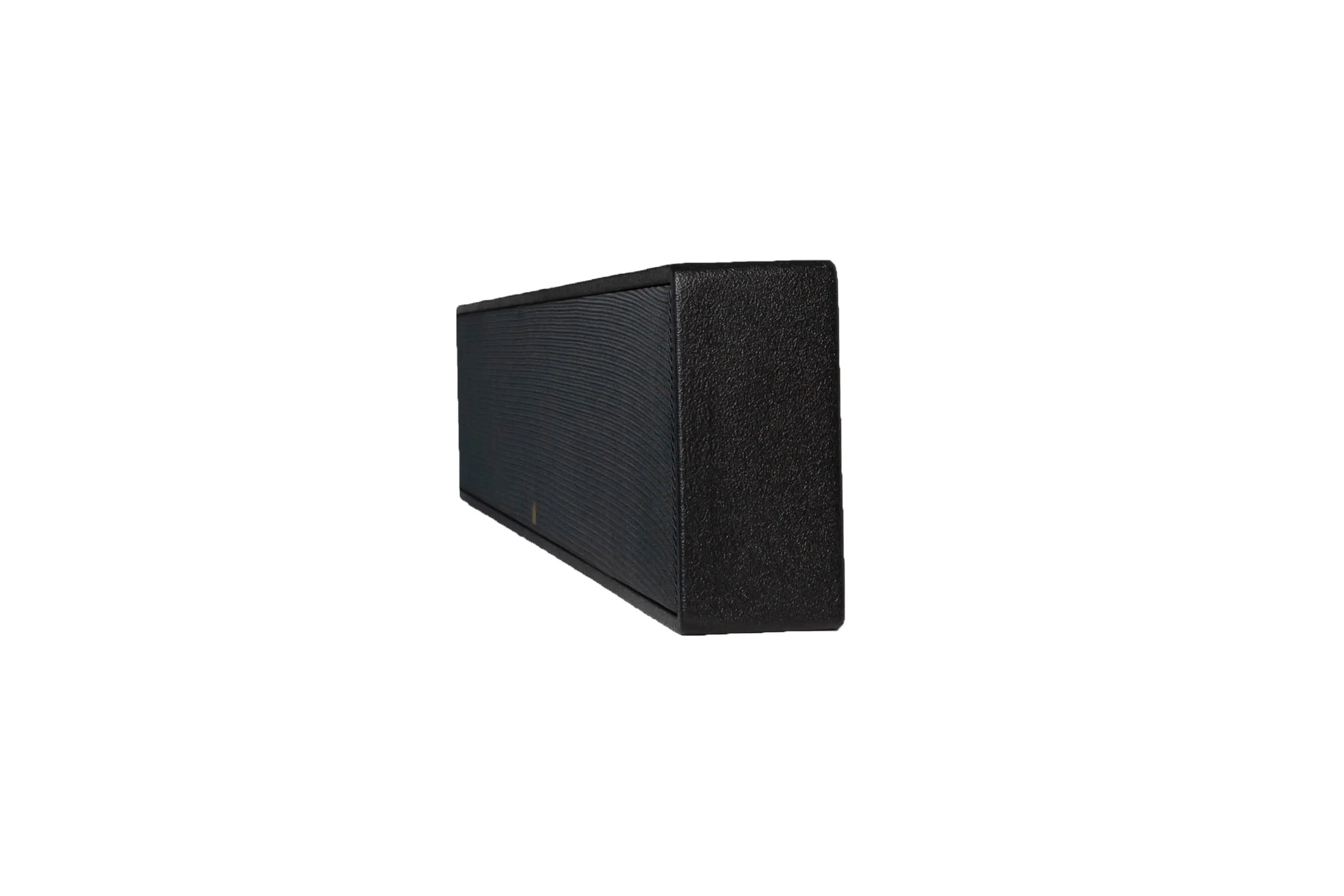

The Panorama is only 3.78" (96 mm) deep when mounted flush to a wall using its included bracket. It is also ideal for custom recessed installations, as its relatively shallow depth means it maintains its full audio characteristics even when the baffle is flush with a surface. The Tilt Bracket accessory is a rigid mount to the loudspeaker, offering several down-tilt angles. Isolated free-standing deployment is achievable with the Stand accessory.

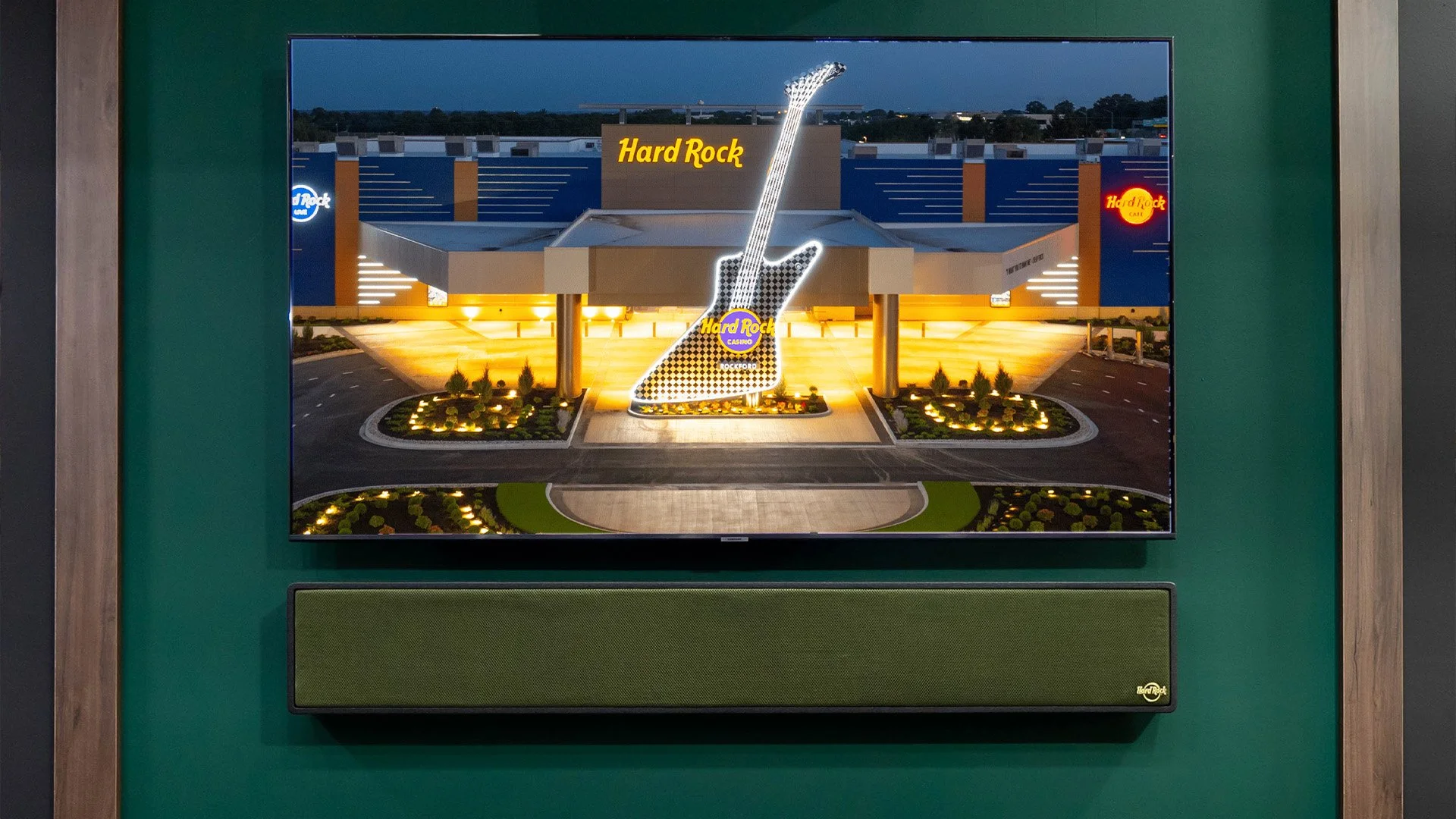

The Panorama is ideal as a multichannel TV sound bar (it is the same width as a 65” TV), stand-alone listening system, distributed audio system, in applications such as classrooms, conference rooms, museums, private dining spaces, residential, and more. The Panorama is offered in two different versions: Active and Remote Powered. The construction is IP55 rated and saltwater resistant. Like all 1 SOUND loudspeakers, the Panorama is available in custom colors and finishes for indoor and outdoor applications.

Panorama Active
The Panorama 65 Active offers an IEC 100-240 V AC cable to plug directly into a standard 120-240 V outlet. Multiple inputs are available, such as an analog Phoenix Connector for a L/R, HDMI e-ARC, and a Network Port for AES67, Milan/AVB, and Dante.

Panorama Remote Power
The Panorama Remote Powered kit contains an external Powersoft Mezzo 604A amplifier and cable kit for deployment.

SPECIFICATIONS

Description: Active, high-fidelity, self-contained stereo system featuring Panorama Technology
Bandwidth: 40 Hz – 18 kHz (-6 dB preset dependent)
Max SPL: 122 dB SPL @ 1 m with preset
Power:   IEC 100-240 V AC @ 50-60 Hz
Directivity: 120° horizontal × 70° (-6 dB)
Connectors:
Analog input: Phoenix connector
Digital input:  (1) HDMI e-ARC, (1) Network RJ-45 audio protocol: AES67, Milan/AVB, Dante
Power:   IEC 100-240 V AC @ 50-60 Hz
IP Rating: IP55 indoor/outdoor and salt water resistant

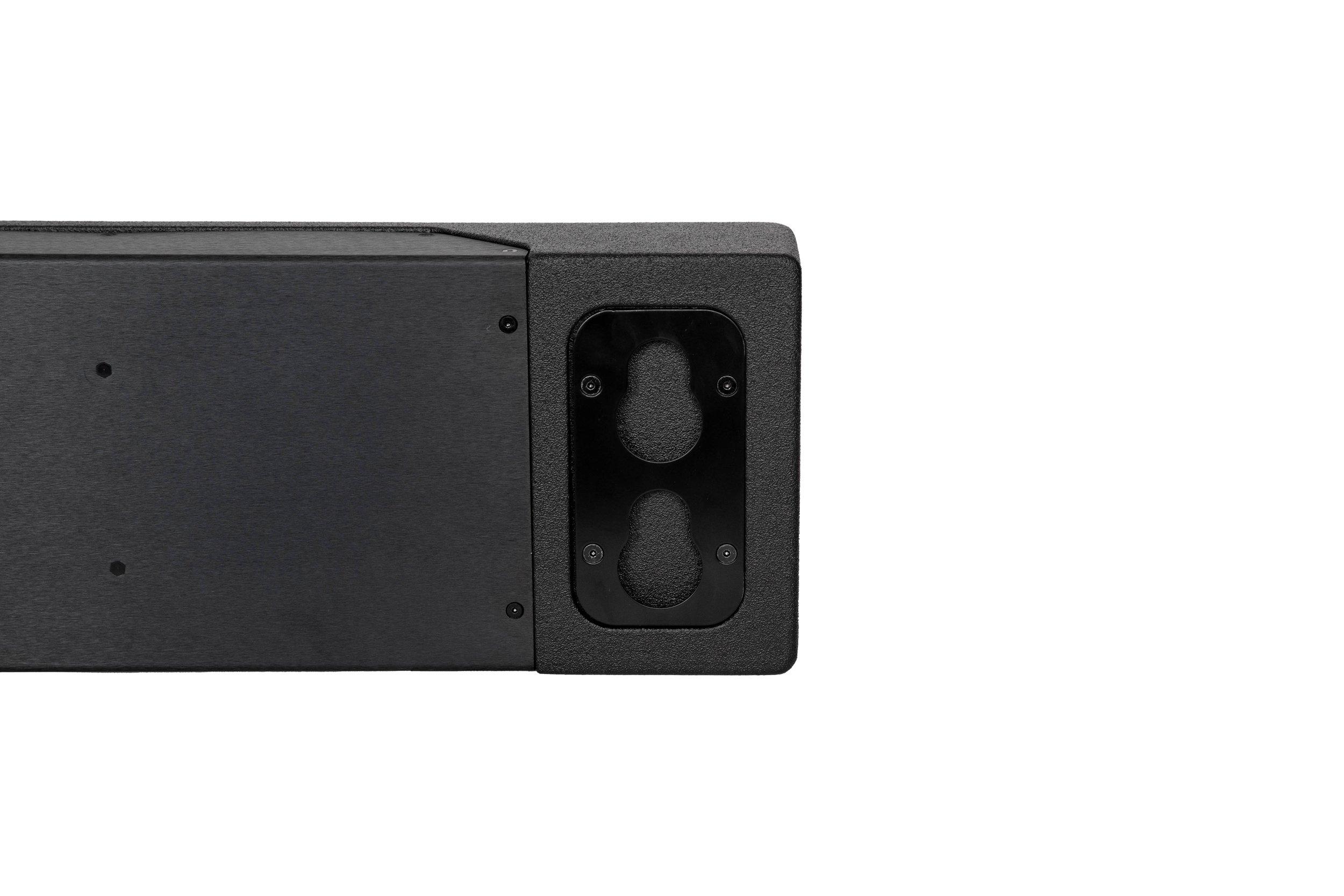

Rigging: (4) Custom keyhole hangers for the included Flush-Mount Bracket
Weight: 39.7 lbs / 18 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 (316) stainless steel and Series 5000 aluminum hardware, 3D spacer mesh fabric
Accessories: Flush-Mounting Bracket [included], Tilt Bracket, Stand
Dimensions: 56.7" (1440 mm) x 8.4" (213 mm) x 3.8" (96 mm)

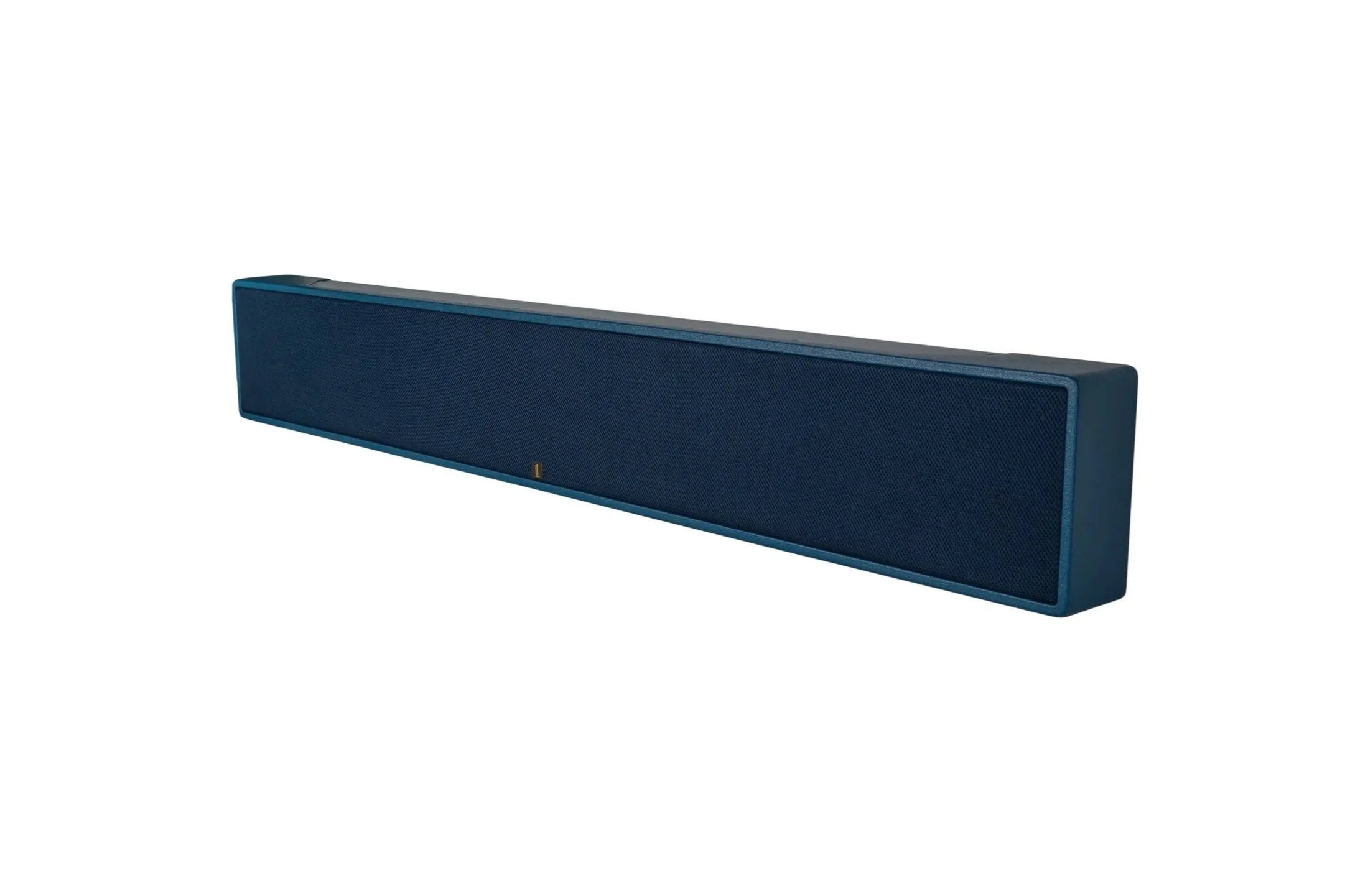

Colors: Stocking black and white, custom colors and fabrics available

DOWNLOADS

P65 SPECIFICATION & DATA SHEET - COMING SOON…
P65 EASE PROFILE - COMING SOON…
P65 EASE FOCUS 3 - COMING SOON…
P65 CLF FILE - COMING SOON…
P65 PDF DRAWING - COMING SOON…
P65 2D DWG DRAWING - COMING SOON…
P65 3D DWG - COMING SOON…
Panorama 65 REVIT (Freestanding/Flush-mounted) [with materials] - COMING SOON…
Panorama 65 REVIT (Freestanding/Flush-mounted) [w/o materials] - COMING SOON…

High-fidelity, Self-Contained stereo system
Featuring Panorama Technology

ACCESSORIES: Flush-Mount Bracket [included], Tilt Bracket, Stand

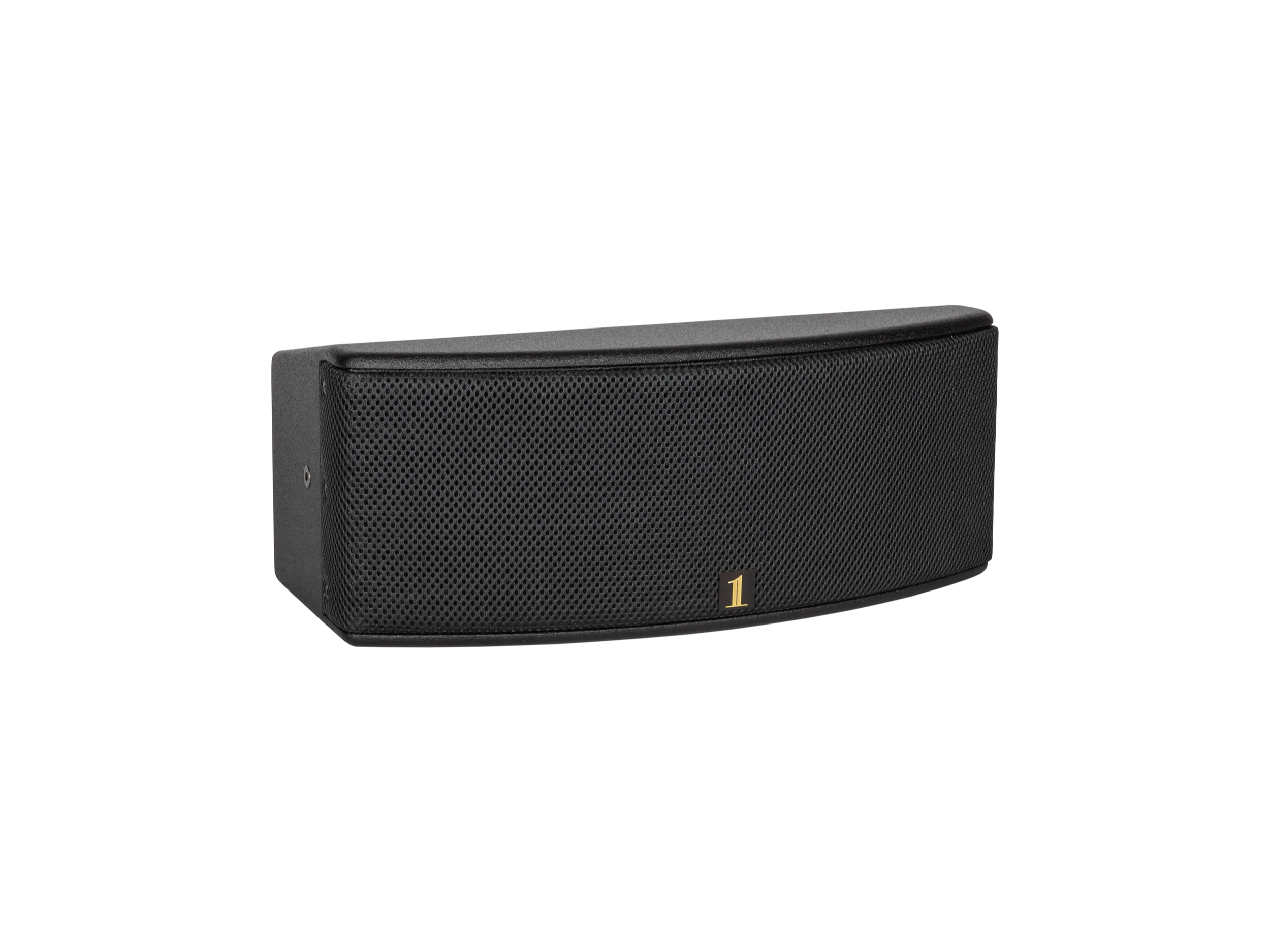

Using the Mono+Stereo Controller, Mono+Stereo Technology starts with L/R and divides it into a mono (mid) plus sides. From there, the M+S is arranged in this compact Panorama MS34 loudspeaker, preserving the true mono while surrounding the listener with a spacious stereo image.

As a stand-alone mono loudspeaker (switch and preset dependent), it can become a horizontal line source, helping to preserve its off-axis frequency response while adding 5 more dB of gain.

This loudspeaker is “1 of a kind” as a front fill, under balcony, monitor, and an installed distributed system.

ADDITIONAL FEATURE: M+S/Mono switch transforms the Panorama MS34 into a mono line source (vertical or horizontal) with 5 dB more output than M+S mode.

SPECIFICATIONS

Description: M+S, 2 channel coaxial with an optional mono (line source) switch (DSP dependent)
Bandwidth: 95 Hz - 18 kHz (-6 dB)
Max SPL: 114 dB @ 1m with preset
Power: 200+200 watts (program), 100+100 watts (AES)
Directivity: 100° conical (-6 dB)
Elements: (1) 4” coaxial w/ 1.4” HF compression driver, (2) 4” full range, (2) 3.5” passive radiators
Impedance: 16Ω + 16Ω
Connectors: (2) NL4, a switch that changes M+S mode to mono (line source) mode
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (2) M6 points
Weight: 9.4 lbs / 4.3 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, 3D spacer mesh fabric
Accessories: C-Clamp (wall, truss, mic stand, ceiling mounting), L-Bracket, Tube Mount, Pole Mount Adaptor
Dimensions: 14.5" (370 mm) x 5.6" (144 mm) x 7.8" (198 mm)
Colors: Stocking black and white, custom colors and fabrics available

downloads

MS34 SPECIFICATION & DATA SHEET
MS34 EASE PROFILE
MS34 EASE FOCUS 3 (MONO) PROFILE
MS34 CLF FILE (MONO)
MS34 PDF DRAWING
MS34 2D DWG DRAWING
MS34 3D DWG (freestanding)
MS34 REVIT FAMILY (free-standing) [with materials]
MS34 REVIT FAMILY (C-Clamp mounted) [with materials]
MS34 REVIT FAMILY (free-standing) [w/o materials]
MS34 REVIT FAMILY (C-Clamp mounted) [w/o materials]

downloads

M+S CONTROLLER SPECIFICATION & DATA SHEET

The M+S Controller is an analog audio device that accepts a stereo (L/R) signal and outputs mono+stereo (MS). This unit is active and electronically balances the outputs enabling longer cable runs. The controller is capable of providing audio for two discrete L/R mixes.

The M+S controller is a necessary component for the MS34 to operate in M+S mode. It is not necessary to operate the MS34 in mono (line source) mode.

• connectors are line level XLR male and female

• front LED indicators are multicolor to indicate the amount of input level

• 19” rack mountable with an external power supply

• Power Consumption:

  • input: 100-240V ~ 50-60Hz 2.0A

  • output: 24V - 1.67A
